Low pressure injection molding waterproof process of industrial circular connector to improve waterproof level

The low pressure injection molding process is a kind of packaging process that uses a very low injection pressure to inject the hot-melt adhesive into the mold and quickly solidify it (1-50 seconds). With the excellent sealing performance and excellent physical and chemical properties of the hot-melt adhesive material, it can achieve the functions of insulation, temperature resistance, impact resistance, shock absorption, moisture-proof, water-proof, dust-proof, chemical corrosion resistance, etc. It plays a good role in protecting electronic components. Compared with the traditional filling and sealing process (such as two-component epoxy / polyurethane filling and sealing), the low-pressure injection molding process is not only environmentally friendly, but also can greatly improve the production efficiency to help reduce the total production cost.

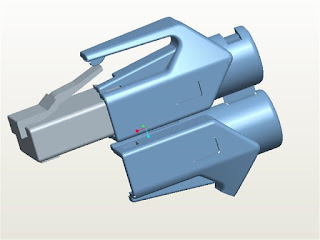

Electronics internet RJ45 plug assembly connector

Electronics internet RJ45 plug assembly connector

internet RJ45 plug assembly connector

internet RJ45 plug assembly connector

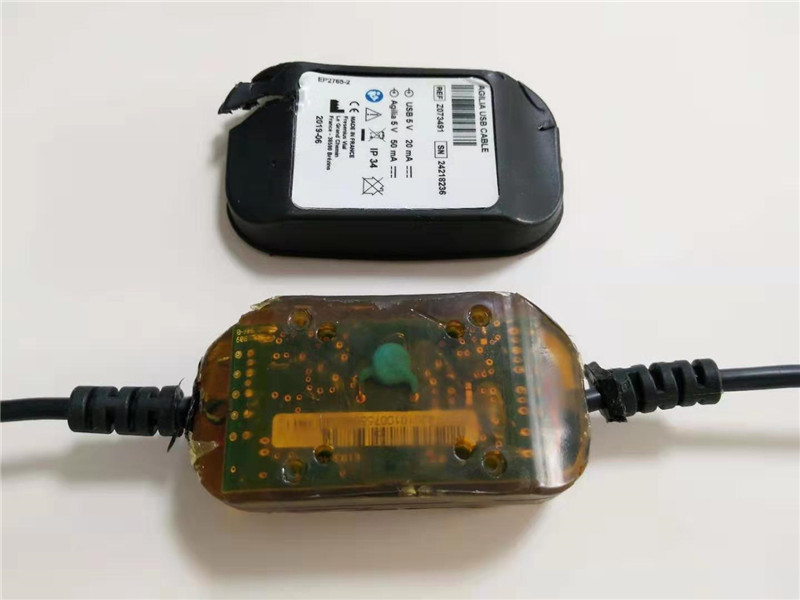

Electronics Fresenius 4M AGINLIA RS232 USB CABLE

Electronics Fresenius 4M AGINLIA RS232 USB CABLE

AGINLIA RS232 USB CABLE

AGINLIA RS232 USB CABLE

Automotive industry

Automotive industry M12 Operating standard, combining characteristics of power cable and data cable, with the characteristics of little occupied area and reducing the cost of installation, is suitable for process automatic control and industrial application, automation equipment, electronic equipment, electronic instrumentation, sensors, commercial transportation, and military/aerospace applications.
Using 4/5/8 contacts, each contact is able to carry the highest current 4A.
Products is made by injection molding technology and it can ensure perfect IP67 seal class and provide the reliable stress relieving capacit.

Automotive industry mold tooling

Industrial equipment cable assembly

Electronics cable assembly

Industrial equipment cable assembly

The M12 series waterproof wire connector features sensor and actuator connectors with a locking thread for electronics automation, process control, and commercial electronics. We offer many different cable connectors, panel mounted receptacles, field attachable/installable connectors and various accessories. Our connectors have industry-standard A,B,C, and D cording, for both screw-locking and quick-locking styles.

Industrial equipment cable assembly

Electronics M12 connector cable assembly

Electronics M12 connector cable assembly

The outer leather of the cable is PUR, TPE, PVC, etc.
The M12 cable of xii connection technology conforms to RoHS, CE, UL certification, good quality, reasonable price and short delivery time

Electronics M12 connector cable assembly

Electronics Hybrid waterproof connector

Electronics Hybrid waterproof connector

Standard:

IEC 60529

Ambient temperature:

-20℃ ~ +105℃

Connector insert:

PA66

Connector contacts:

Brass with gold plated

Connector over-molding:

TPU/PVC

Coupling nut/screw:

Copper alloy with nickel plated

Insulation resistance:

≥100MΩ

Contact resistance:

≤0.5mΩ

Shielding：

optional

IP rating:

IP67/IP69K in locked condition

Electronics Hybrid waterproof connector

Electronics Energy storage connector

Electronics Energy storage connector

Energy storage connector system 10A-200A,IP68 UL approve cable assembly,Hybird connector Hight Current,Connector for Energy Storage Inverters DC Converters Fully Integrated Systems

Electronics Energy storage connector

Electronics waterproof connector 20A-200A

Electronics waterproof connector 20A-200A
The rated voltage is 300VAC / DC, the current is up to 40A Level 2 power supply and 6-core 5A signal frequency transmission. The use of severe working load socket meets the requirements of CE industry. It has shockproof characteristics and prevents the coupling from loosening. It can remain stable even under extreme vibration.

Electronics waterproof connector 20A-200A
